GX1 Hustler Bull Bar — Dakar | Type X EVO

Signature Rally Style. Bold Presence. Maximum Output.

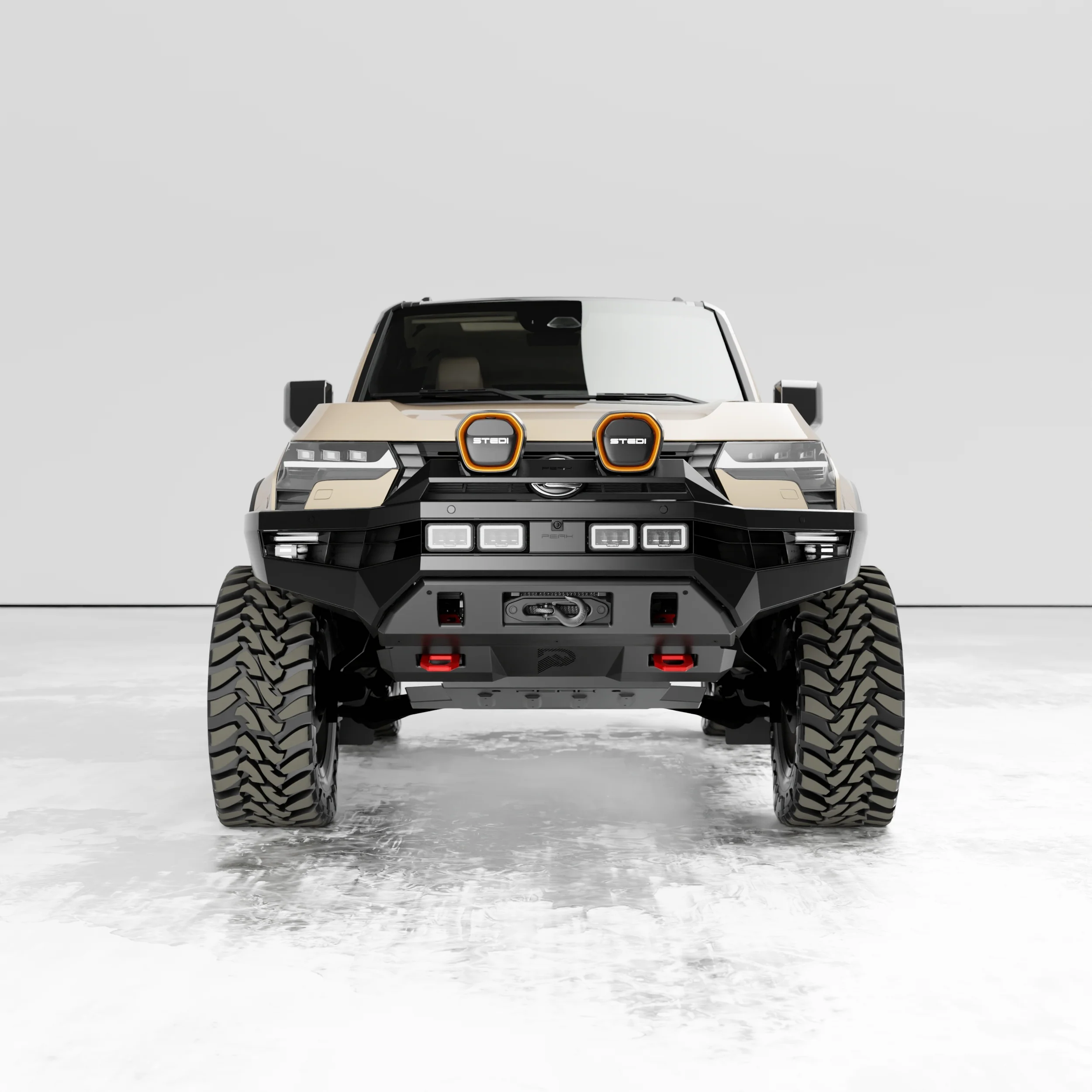

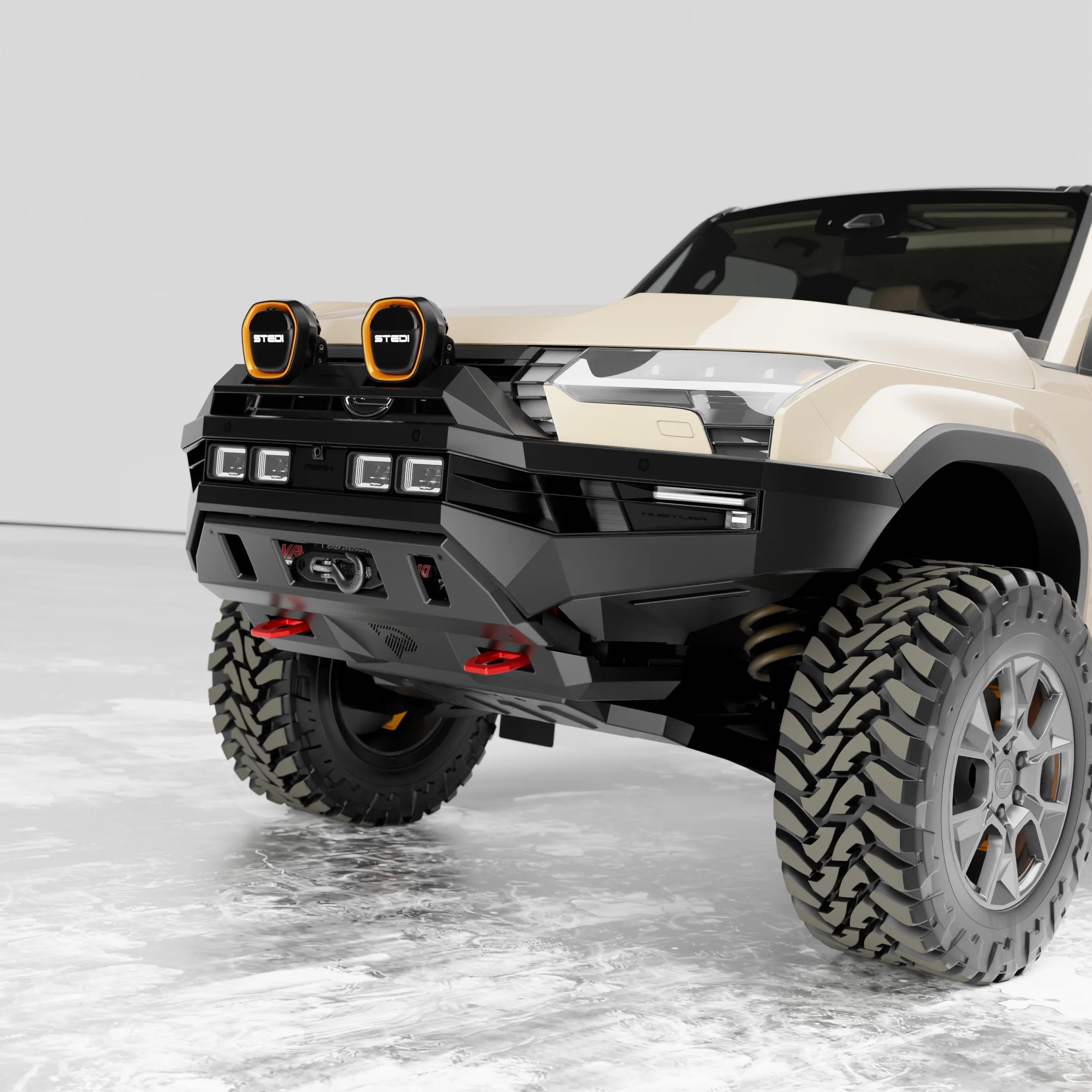

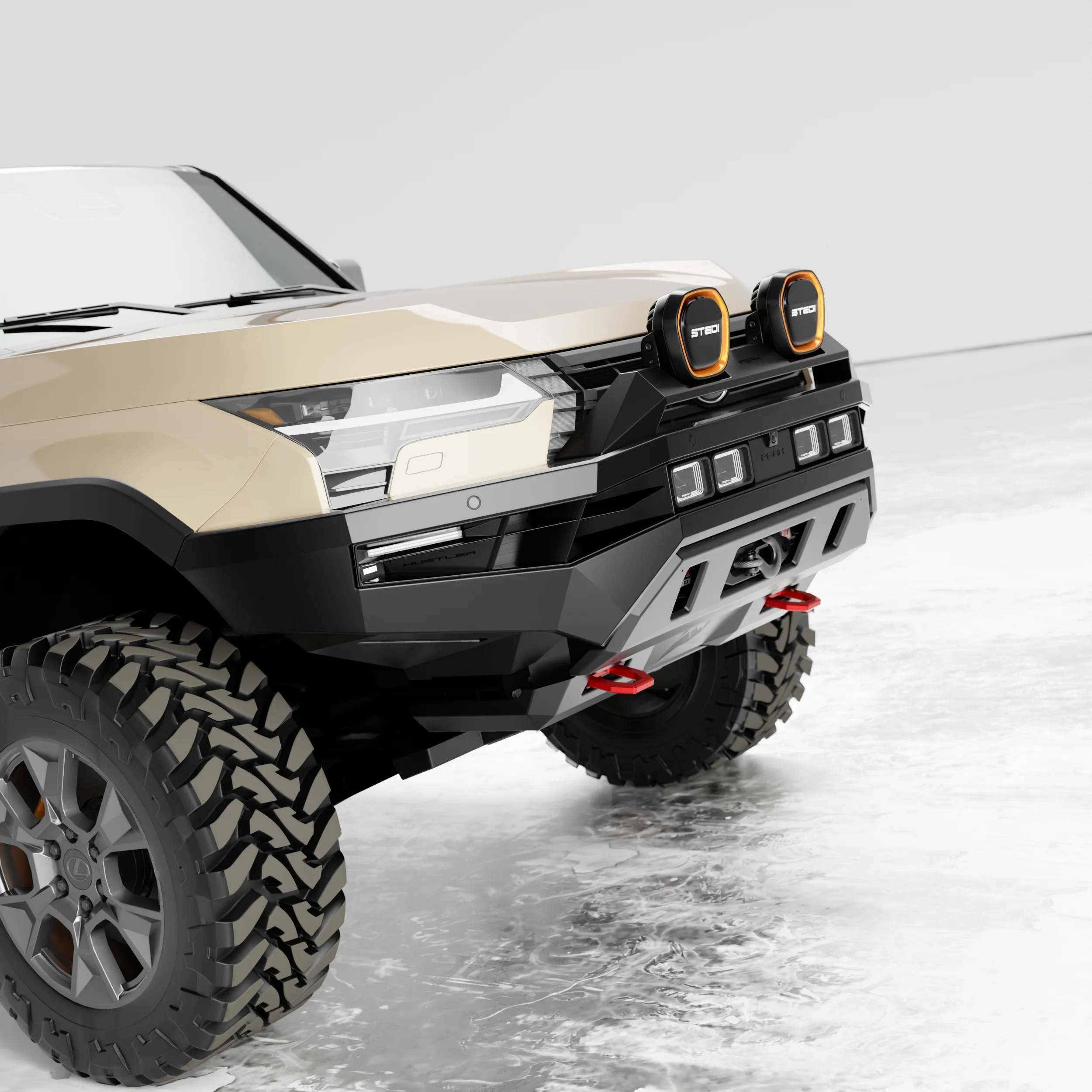

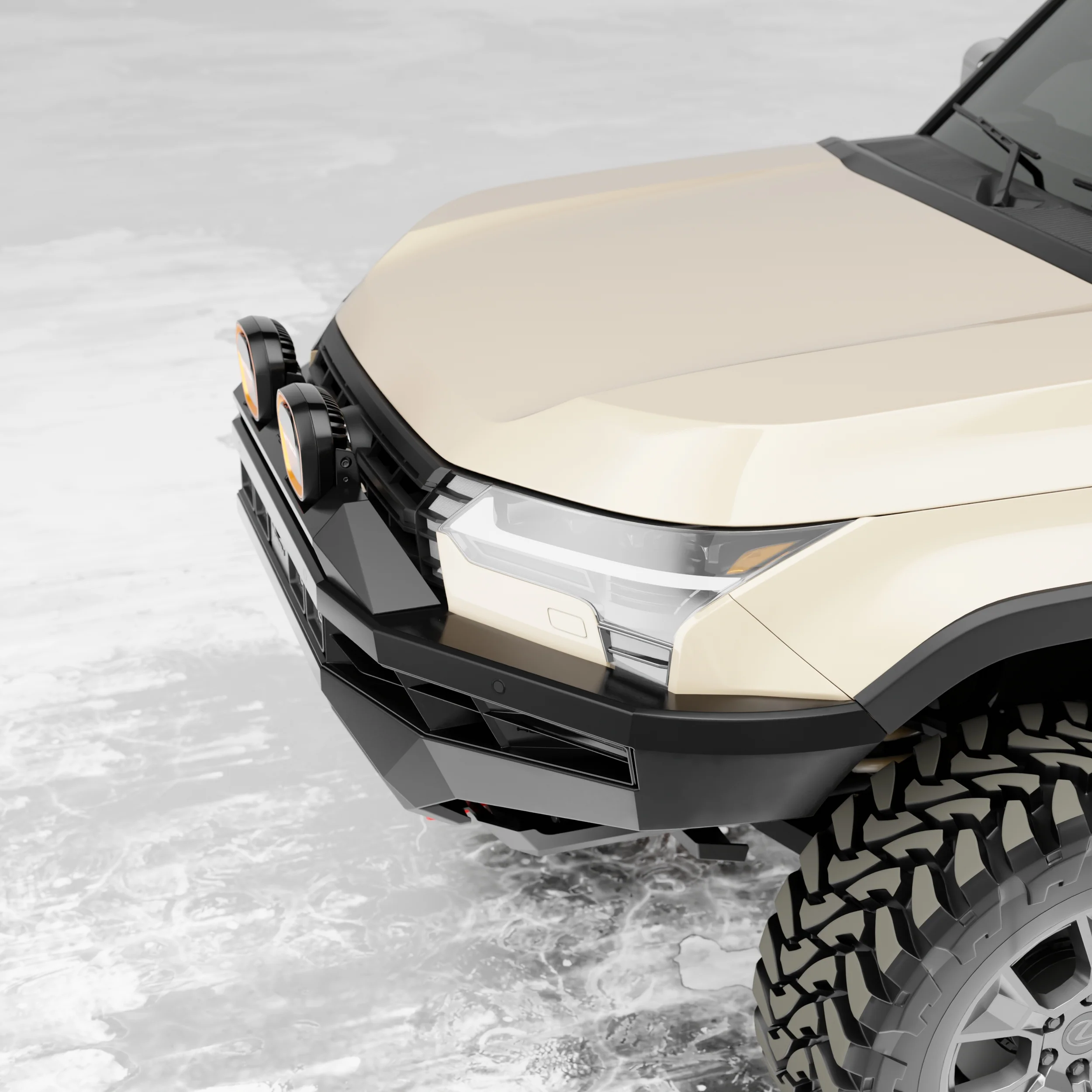

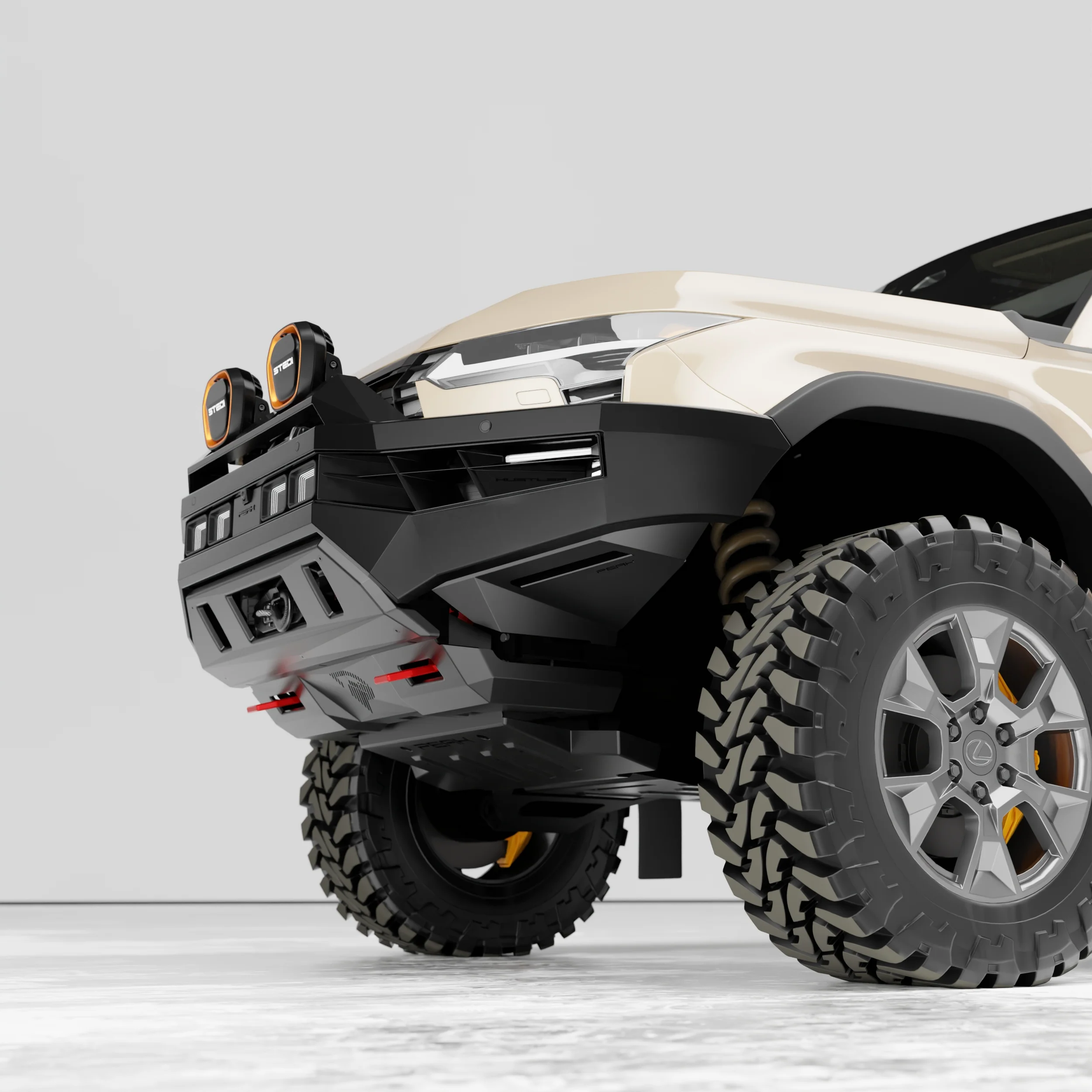

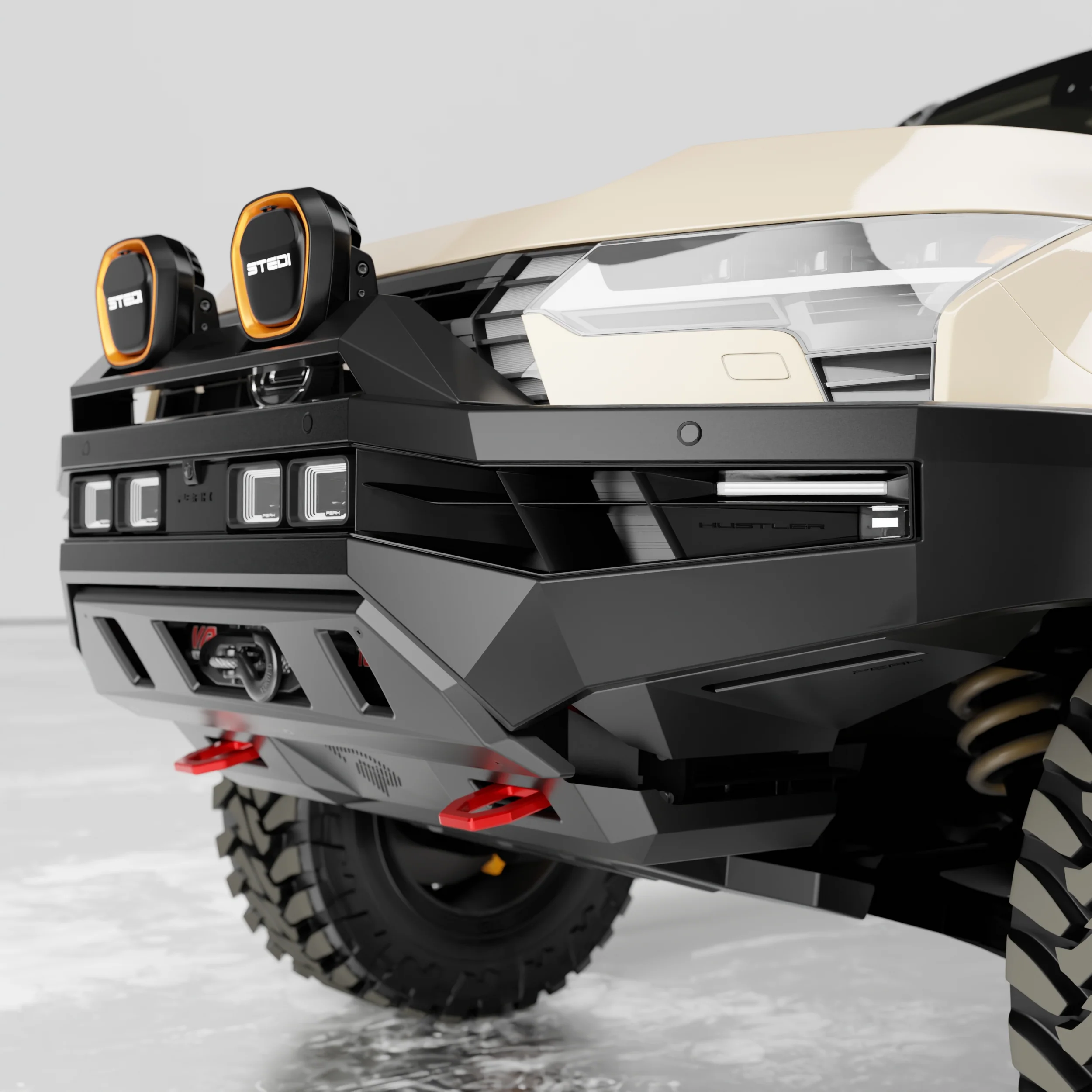

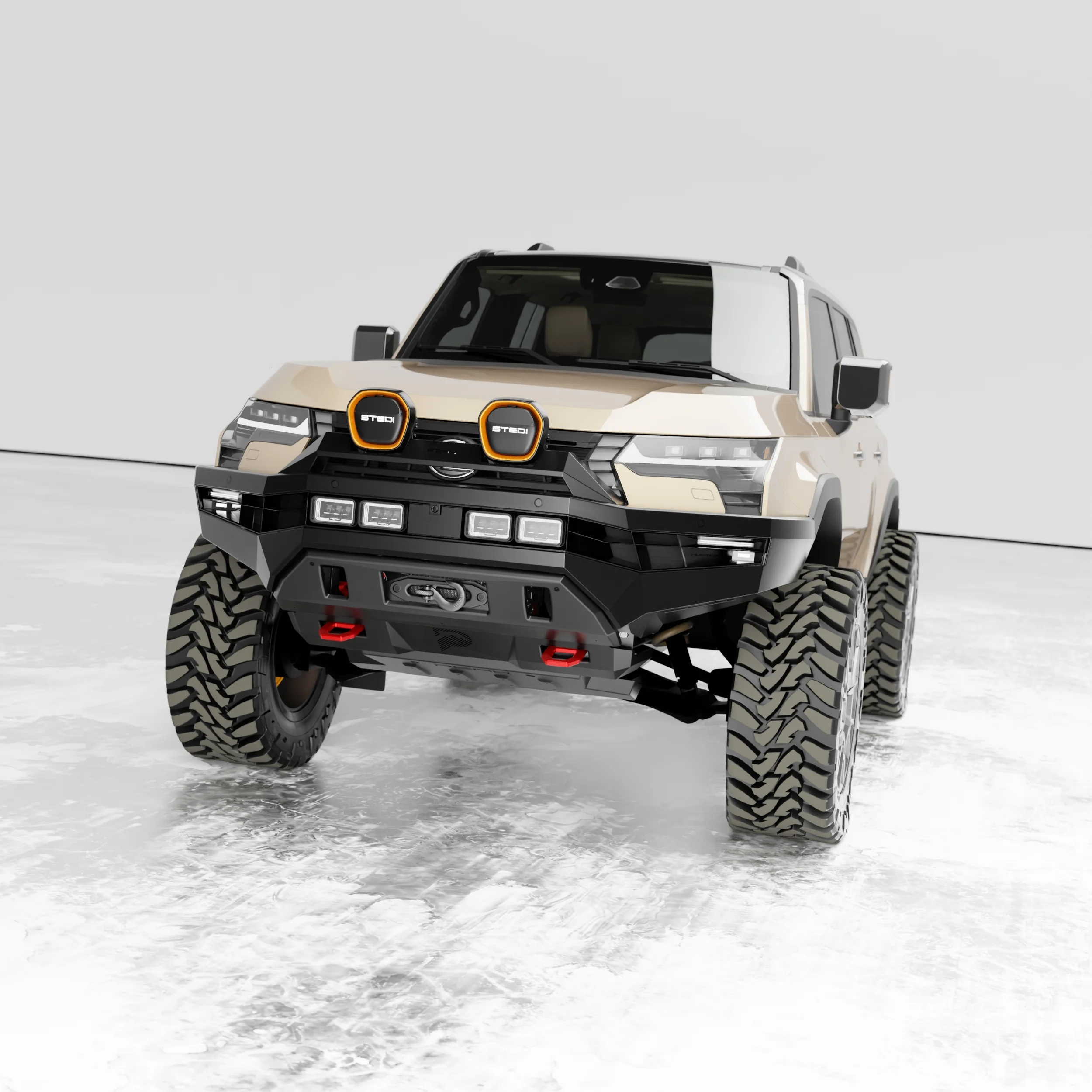

The GX1 Hustler Dakar | Type X EVO is designed for those who want rally-inspired aggression with uncompromising performance. Featuring a centre Dakar hoop and a factory-integrated pair of STEDI Type X EVO 8.5” driving lights, this variant combines striking looks with brutal forward visibility.

Behind the grille, the same core features remain: full CANBUS integration, integrated PEAK LED flood lights, a high-flow aerofoil grille, and winch-ready architecture. Built using hybrid steel/aluminium construction and designed to retain all factory radar, sensors, and camera functionality.

---

Key Features

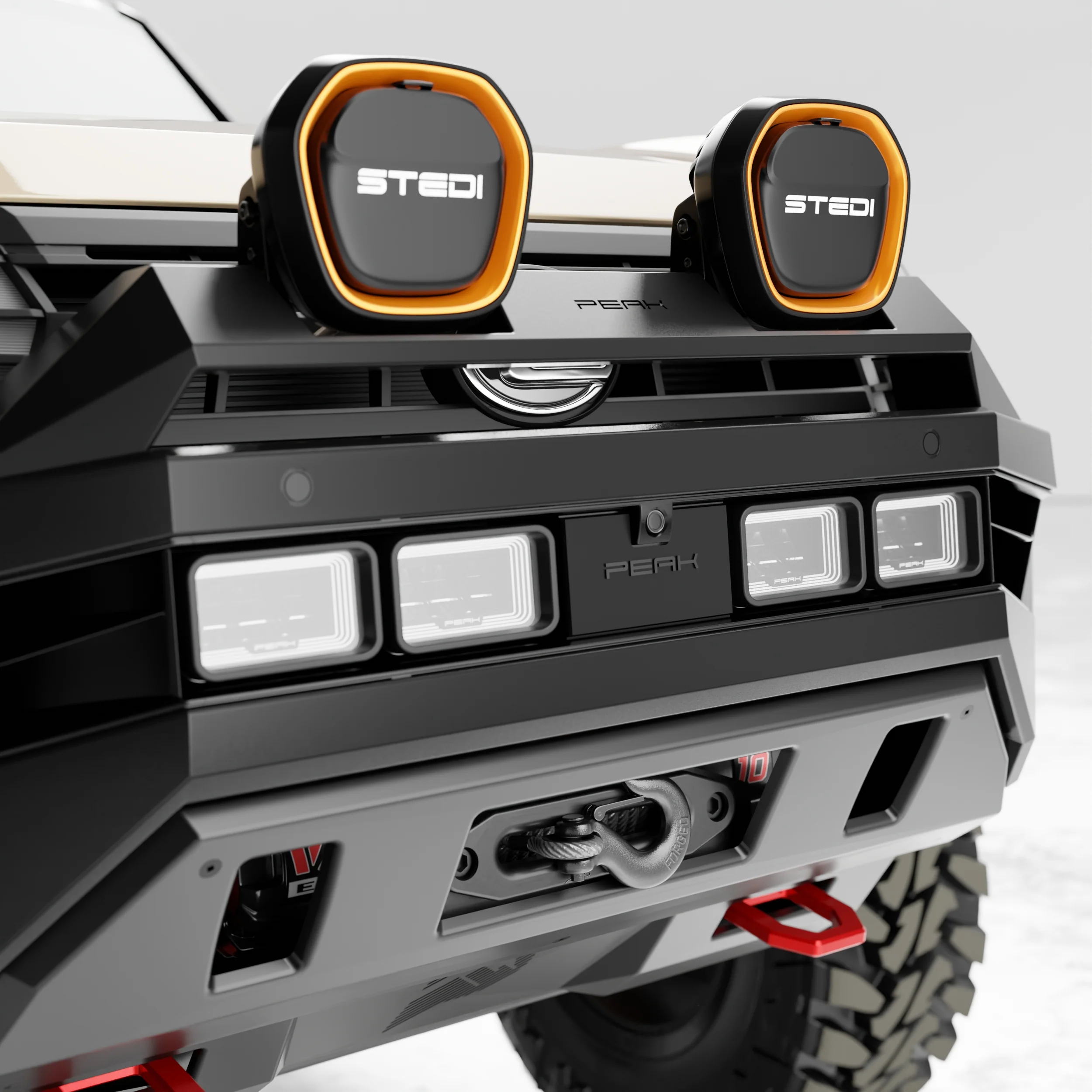

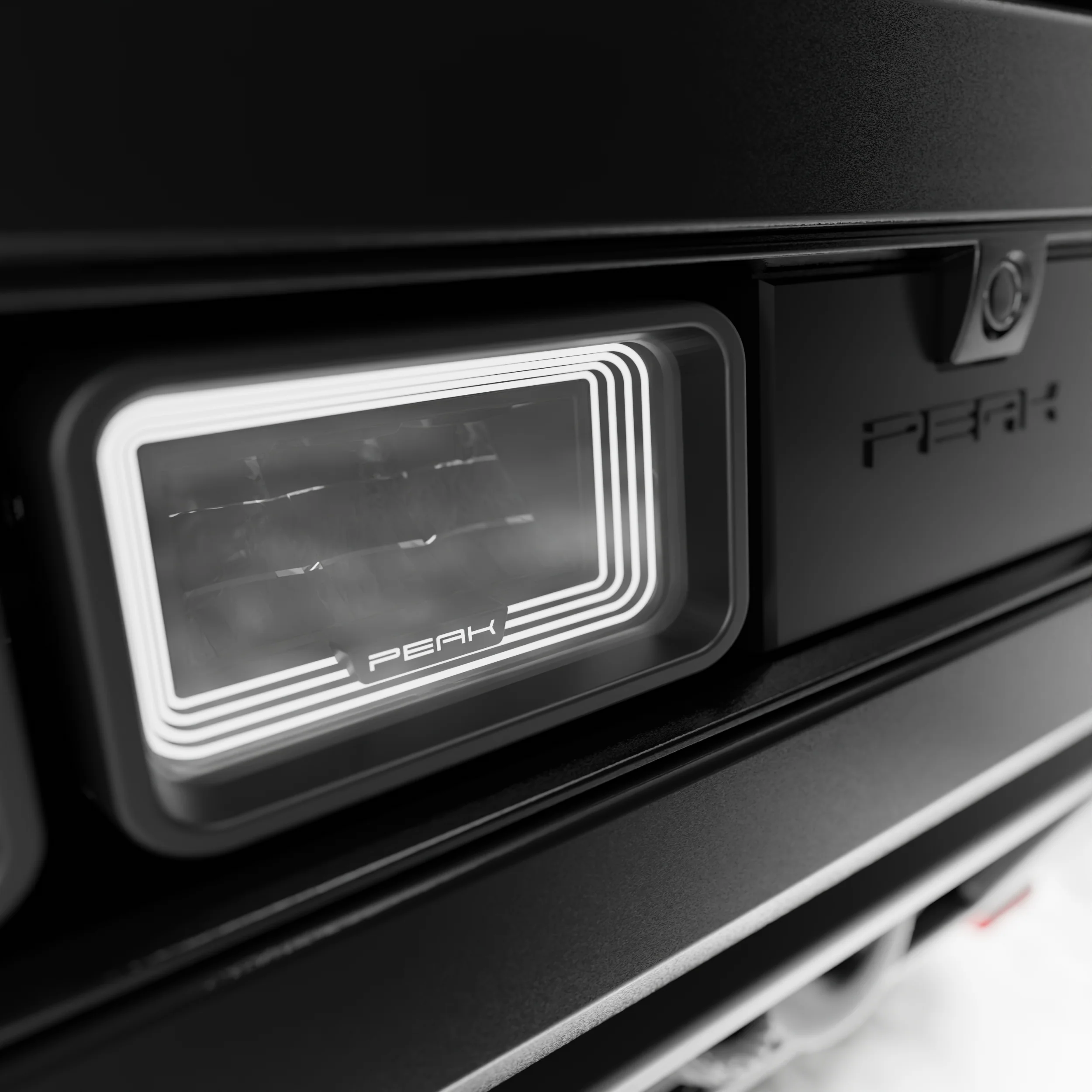

Integrated Quad PEAK LED Flood Lights
Four precision-calibrated units with built-in DRLs for unmatched clarity and spread.

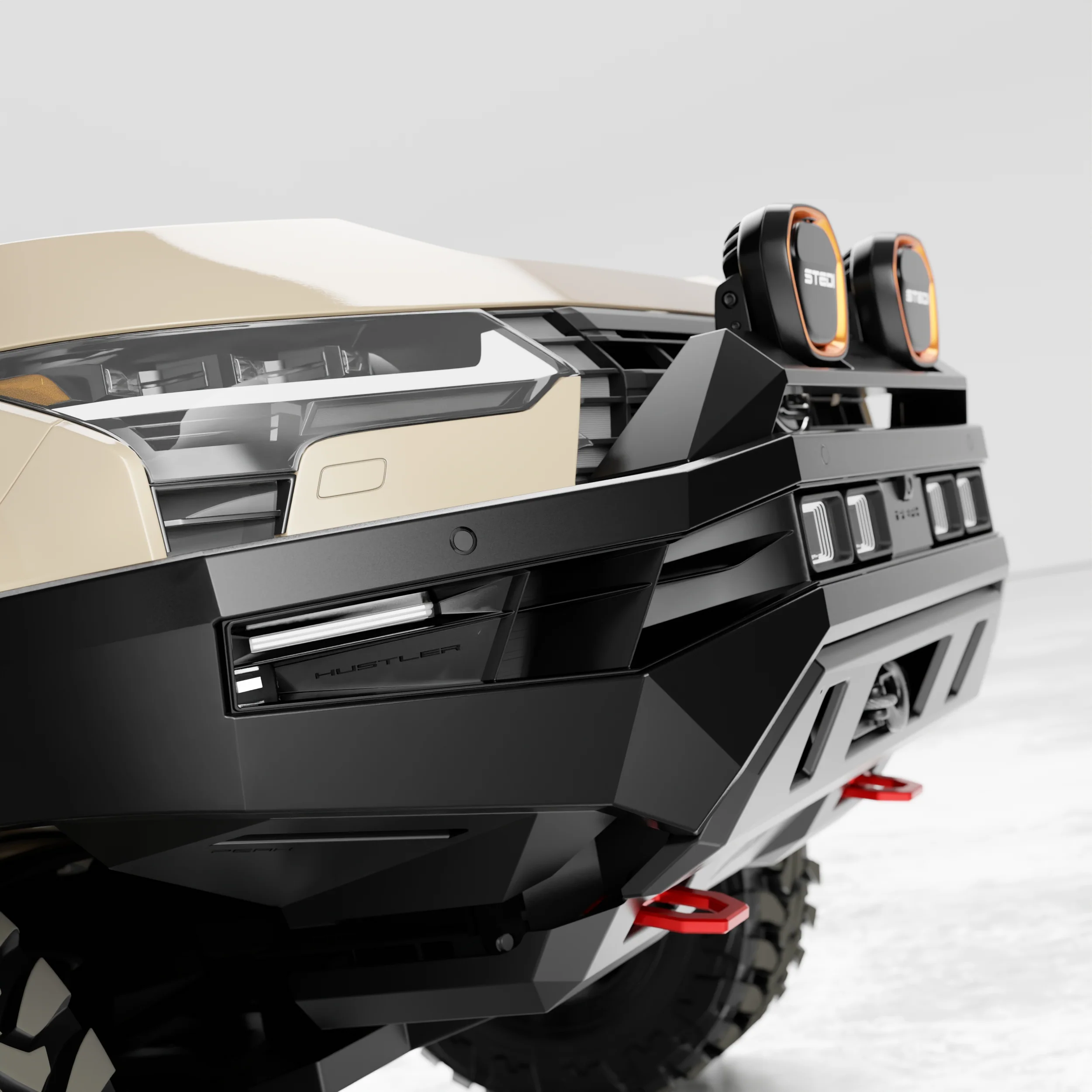

Side-Mounted DRL/Indicator Combo Lights + High-Powered Fog Lamps
Designed to complement the GX550’s factory aesthetics while boosting visibility in all directions.

Advanced System & Lighting Architecture
All lighting housed in a high-gloss piano black grille, seamlessly integrating radar, front camera, and airflow-enhancing ram ducts for dual intercoolers.

CANBUS-Compatible Electronics
Includes a fully integrated CANBUS lighting control module — standard, not an upsell.

Hybrid Construction for Strength & Weight Efficiency

• • Main body and chassis bracing: 6mm / 5mm / 3mm solid steel construction
  • Bash plates: 5mm aluminium
  • Designed to reduce weight without compromising strength or safety.

Winch-Ready Cradle
Compatible with low-mount winches up to 13,000lb. Winch can be installed after fitment via removable top plate access.

5-Tonne Rated Recovery Points
Dual integrated recovery points, designed and tested for serious recovery scenarios.

Sensor & Radar Integration
Full compatibility with factory parking sensors, radar, and front camera — precision placement, no compromises.

UHF Aerial Mounting Points
Discreet and practical mounts included on all variants, positioned for optimum signal and cable management.

Finish Options

• • Jotun™ textured powder coat (satin black)

ADR69 Compliant & Airbag Compatible
Independently tested to meet all applicable Australian Design Rules and airbag deployment criteria.

Specifications

Vehicle Compatibility: Lexus GX550 (2024+)

Bar Type:
Dakar | Type X EVO: Rally hoop + STEDI 8.5” Type X EVO lights

Construction:
- Solid steel: 6mm, 5mm, 3mm (main body & chassis bracing)
- Aluminium: 5mm (bash plates)

Lighting:
- 4 x PEAK LED flood lights with DRLs (integrated)
- Side-mounted DRL/indicator combo lights
- High-output fog lamps

- STEDI Type X EVO 8.5” pair (Dakar | Type X EVO)
- 21.5” dual-beam LED light bar (Dakar | Light Bar Edition)

Finish:
- Jotun™ satin black powder coat

Recovery Points:

- Dual integrated, 5T rated

Winch Compatibility:
- Up to 13,000lb low-mount
- Post-install accessible via removable top plate

UHF Mounting:
- Integrated aerial mounting points (included on all variants)

Tech Compatibility:
- Full CANBUS integration included
- Retains radar, front camera, parking sensors

Certification:
- ADR69 Compliant
- Airbag Compatible

Installation & Maintenance

Installation Notes

• Supplied with all required hardware, mounting brackets, and CANBUS control module

• Winch can be installed after the bar is mounted — no need to remove the bar

• Lighting connectors are plug-and-play for CANBUS-equipped GX550 models

• Professional installation is strongly recommended due to radar, camera, and sensor alignment



Maintenance Guidelines

• Inspect mounting bolts, recovery points, and bash plates periodically, especially after off-road use

• Clean powder-coated surfaces with mild soap and water only — avoid harsh chemicals

• For primed units, follow automotive refinishing best practices before painting

• Check lighting and sensor connections seasonally for ingress or corrosion

• Ensure all ADAS (radar, camera, sensor) zones remain clean and unobstructed



Pre-Orders Now Open – First Deliveries September 2025

This is a complete, fully-loaded system — no hidden costs, no upsell surprises.

Where others start at a base price and charge extra for essentials like lighting, CANBUS modules, and recovery points, the GX1 Hustler arrives ready to go.

Nothing more to buy. Nothing more to fit.
